Labelling Machines – LKB Machines

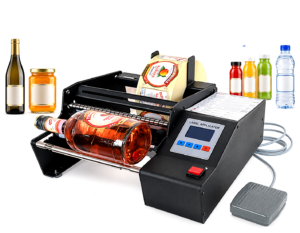

Automatic Labeling Machine for Cylindrical Bottles, 1-2 Labels

Voltage…220/110V 50/60HZ; Power…400W; Labeling accuracy…±1mm (no product and label errors); Labeling speed…About 20~40pcs/minute; Bottle diameter…20~145mm; Bottle height 25~350mm; Applicable label size…length 25~200mm/width 15~150mm; Min. inner diameter of label roll – 75mm; Max. diameter of label roll-250mm; Package size…About 635*1220*775mm; Package weight…About 146kg;

Automatic Labeling Machine for Cylindrical Bottles

Power supply..220V/50Hz Labeling accuracy.. ±1mm Labeling speed… About 20-40pcs/min Applicable Bottle/Jar size… φ30-120mm, height 25-350mm Applicable label size.. . length 25-300mm /width 15-140mm Machine size… 1270*1000*780mm Packing size… 1310*805*780mm

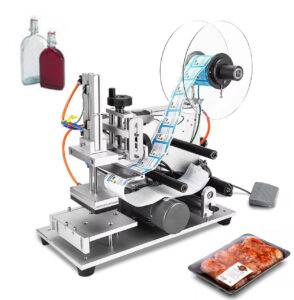

Labeling machine for flat bottles

Roll/label width: 25-120 mm
Label length: 35-205 mm
Package height: 2.5 – 20 cm
Maximum outer diameter of label roll < 20 cm
Spool diameter: 50 mm. to 76 mm
Label application area: 100 mm (H) x 190 mm. (D)
Label spacing > 2.5 – 4 mm
Platform travel speed: 10 cm/s
Machine dimensions: 405 mm. (W) x 310 mm. (H) x 685 mm. (D)

Labeling machine for flat bottles with batch and date coding printer

Voltage: 220V
Power: 120W
Dimensions (L*W*H): 60*40*60cm
CE Certificate
Label Width: 25-70 mm
Label Length: 25-120 mm
Weight: 35 kg

Labeling machine for flat bottles

Voltage: 220V 50Hz /60Hz Power: 120W
Size (L*W*H): 60*40*60 cm
Weight: 35kg
Certificate: CE
Label width: 25-70 mm
Label length: 25-120 mm

Labeling machine for round, square and multangular bottles

The machine glues square (rectangular) and cylindrical objects – bottles, boxes, etc. Fully mechanical, very easy and convenient to operate, productivity about 500-600 per hour

Labeling machine for cylindrical bottles

Size of the machine: 640* 350*460 mm
Applicable bottles with diameter: 12-90 mm
Weight: 25 kg
Outer diameter of label roll: 250 mm
Inner diameter of label roll: 76 mm
Speed of labeling: 20-25 pieces/min
Voltage: 220V
Labeling accuracy: +/- 0,5 mm
Power: 120 w

Labeling machine (Front and back label)

Maximum label roll diameter 200mm (220mm);

Maximum label width 150 mm;
Spool diameter for the reel 76 mm;

Productivity up to 800 pieces/hour;
Ability to stick transparent labels.

Possibility of gluing front
and back label at the same time;

Labeling machine with date code printer

Power: 220W;
Speed of labeling: 25-50 pieces/min;
Labeling accuracy: ± 0,5 mm;
Applicable bottles with diameter: 15-120 mm;
Inside diameter of the label: ≥ Φ75 mm;
Max. label unfold diameter: ≤ Φ275 mm;
Min. size of the label: W20mm * L10 mm
;Max. size of the label: W150mm * L230 mm;
Printer: Yes;
Size of the machine: 65*45 *65 cm;
Gross weight: 35 kg;

The efficiency is up to 40 pieces/min;

Manual labeling machine 135 mm

Labeling speed: 10-30 times/min
Labeling accuracy: 0,5 mm
Min. inner diameter of label roll: 75 mm
Max. label roll diameter: 180 mm
Size of the product: 18 mm to 135 mm
Label width: 10-110 mm, Length: 10-300 mm

Manual labeling machine 165 mm

Label core diameter: 76 mm
Label rolling diameter: ≤160 mm
Bottle diameter: 15-120 mm
Label width: 10-165 mm; Length: 10-300 mm
Speed: 15-20 bottles/min

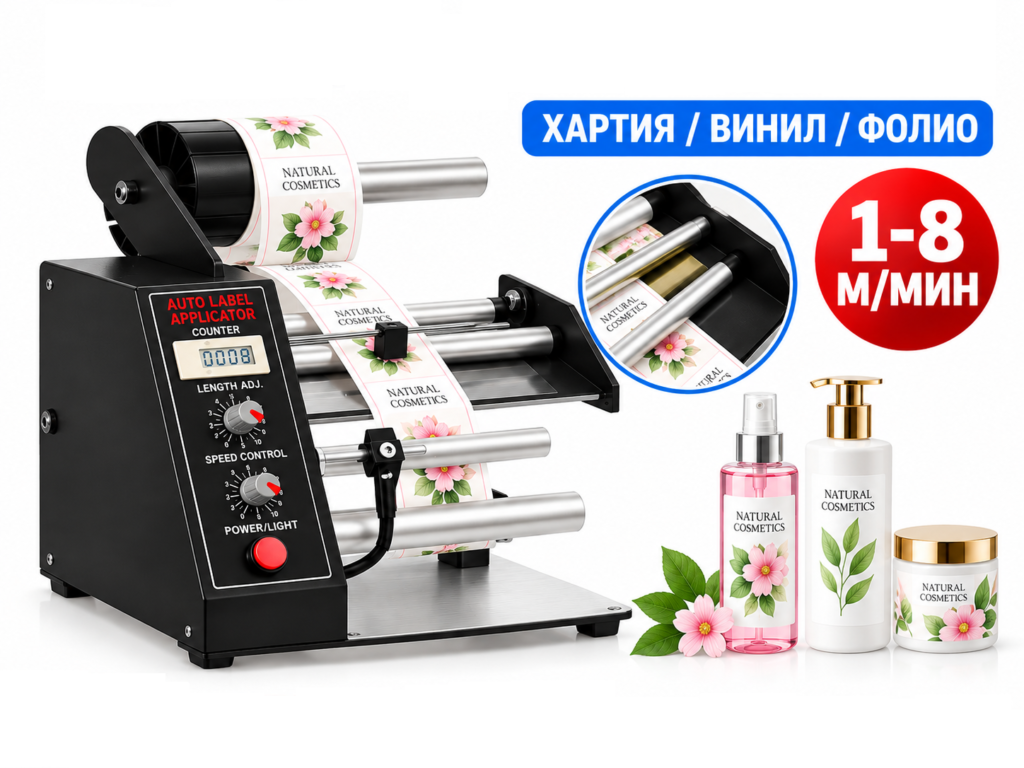

Label Applicator - Label Dispenser

Applicable label length: 3-150 mm
Applicable label width: 4-140 mm
Outer label diameter 25/50 mm
Display: 6-digit LED

Automatic tape cutter dispenser

Tape size: 20 – 999 mm
Applicable tape width: 7 – 50 mm
Reel/spool diameter: 25/35/76 mm

Date and batch coding machine

Printing speed: 20-100 times/min
Work temperature: 0-200 °C
Number of printed lines: 1-3 lines
Number of printed words: One line – around 14 letters
Size: 2*4 mm
Preheatring time: 5-10 min
